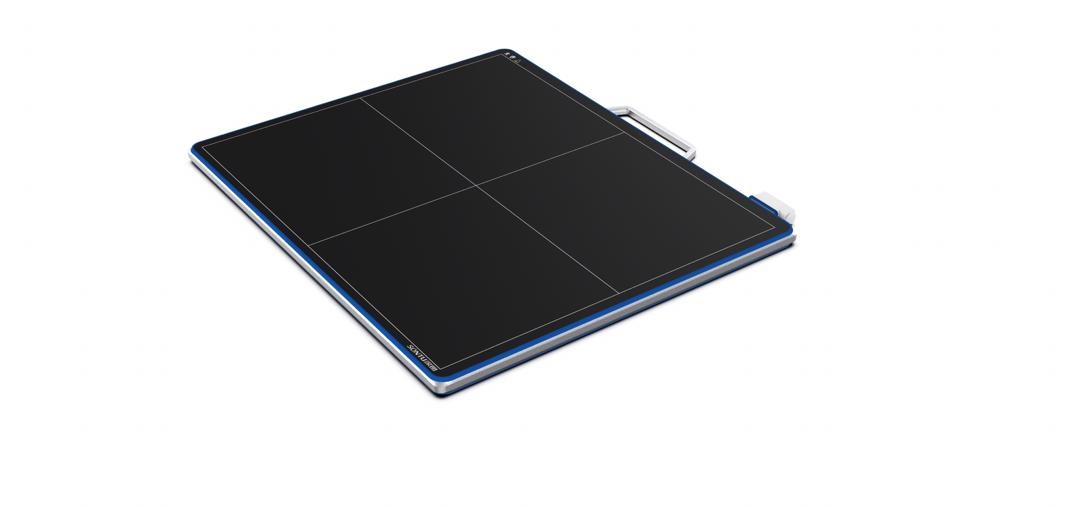

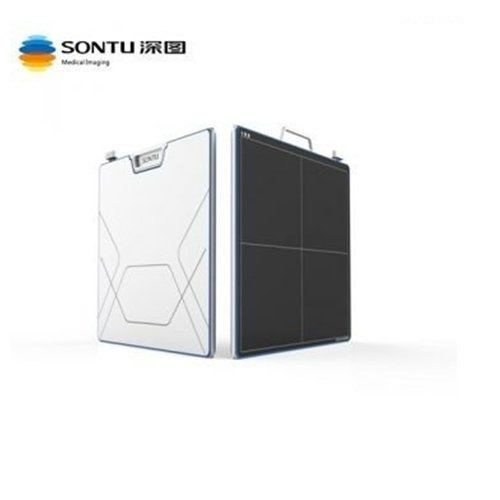

Wireless X-Ray CSL-14X17 FPD Flat panel Detector DR/Portable SONTU 50 Series
৳ 0
| SONTU FPD Technical Parameters | |
| Model | 14X17 |
| Detector type | Amorphous Silicon Flat Panel Detector |
| Scintillator type | CsI |
| Pixel Matrix/mm±0.5 | 350*426 |
| Resolution | 2496*3040 |
| Pixel Pitch/um | 140 |
| Limiting Resolution | ≥3.4Lp/mm |
| A/D Conversion/bit | 16 |
| Sync mode | Fixed integral |
| Imaging time/S | ≤2 |
| Image transmission | Gigabit Ethernet |
| Weight/kg±0.05 | 3.25 |
| Detector size/mm±0.5 | 462*384*16.3 |
| Power input of power box/V | 100～240VAC |
| Power | 22W |
| protection from electric shock | CLASS B |
| Ingress Protection | IP54 |
| Working temperature(℃) | 5～40 |
| Working humidity(%RH) | 15~90 |
| Storage temperature（℃） | -20～+50 |
| Storage humidity（%RH） | 10～90 |
| Irradiation hardness/GY | 150 |
৳ 1,300,000
