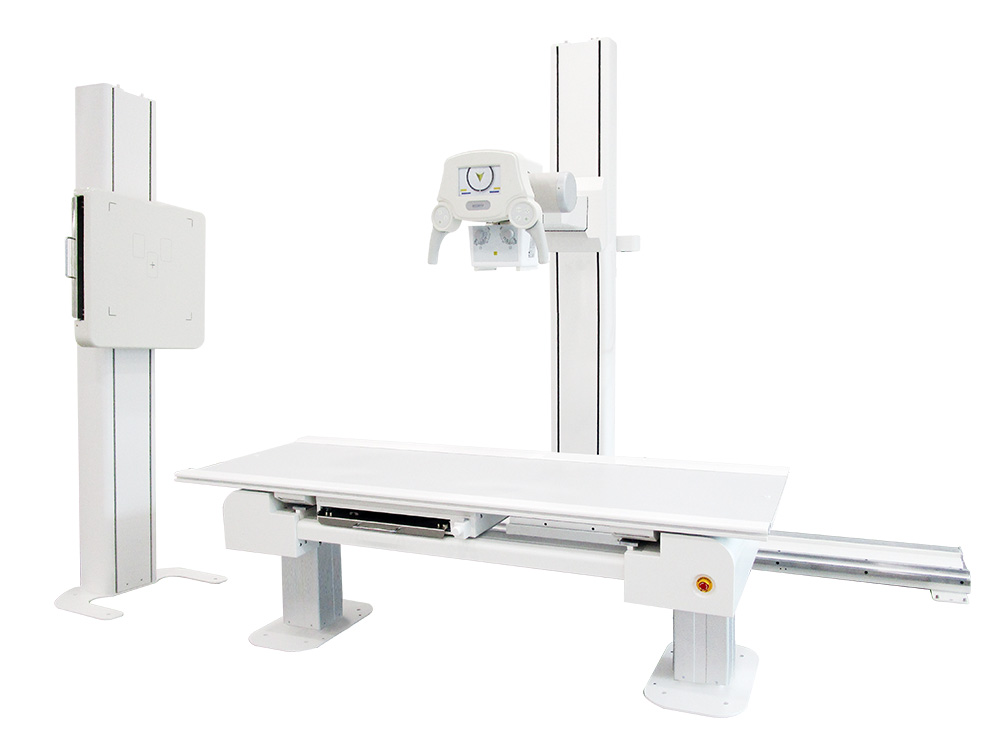

General 500ma Radiographic System HF-525 PLUS

Category	Specifications
Tube	E7252X Focal spots: 0.6mm small (27kW) 1.2mm large (75kW) Anode heating unit: 300kHU Max. kV: 150kV Housing heat unit: 1250kHU
Tube stand	Type: Floor mounted with counterbalanced. Electromagnetic locks Travel ranges : Longitudinal : 180cm Vertical : 149cm (40 to 189cm from the floor level) Transverse : 24cm Tube arm angle : Horizontal axis : -90° ~ +90° Vertical axis : -90° ~ +90° LCD screen to display tube angle status.
Collimator	Type: manual Filtration : 0.1/0.2mm cooper & Aluminum – auto choice available by APR Exposure area to be identified through halogen light
