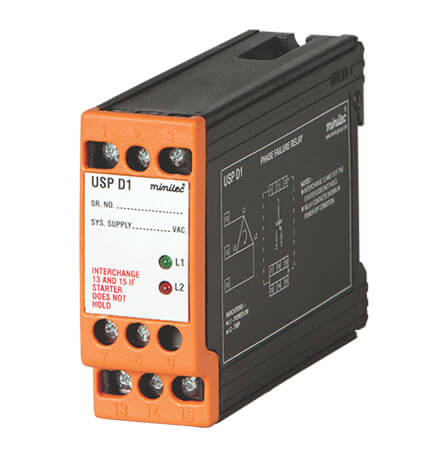

Minilec Phase Failure Relays USP D1
Overview
- Phase Failure, Unbalance,
- Phase Sequence,
- Auto Reset, Fixed Unbalance Setting
- 1 CO output Relay
- Technical Specification
Supply Voltage
- System415 VAC ± 20%, 50 Hz ± 3%
- AuxillaryBuilt In
Output Contacts
Trip Setting
- Phase SequenceYes
- Phase Unbalance60 V± 6 V (fixed)
Trip Time Delay
- On Phase Failure3.5 sec. ± 1.5 sec. Instant for RP
Resetting Mode
Weight
Dimensions (mm)
- Overall (L x W x D)76 x 30.5 x 117.5
- Mounting (L x W)68 centre to centre/ 35 mm DIN rail Mounting
Note:
- Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
Connection Diagrams

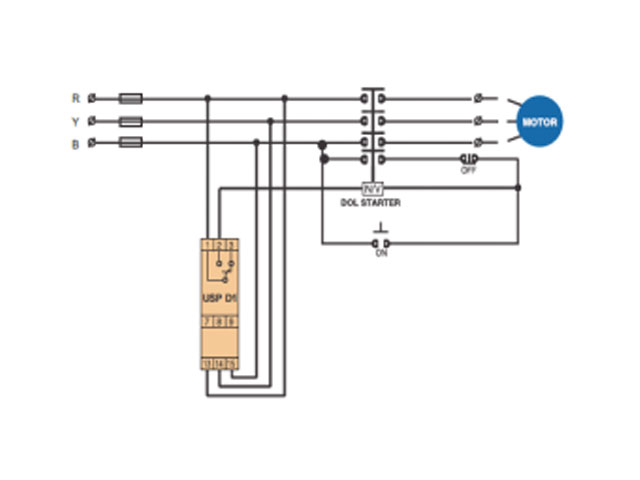

Electrical Connection Diagram
Applications
Suitable for Panels in Following Apllications:
- Agricultural Pump Starters
- 3 Ph. Split AC machines
- Hoist Motor Control
- Valve Actuator Motor
- Machine Tools
- Injection Molding M/c
