Minilec Phase Failure Relays VSP D2

Category:

Electronic Components

Minilec Phase Failure Relays VSP D2 Overview Phase Failure, Unbalance, Phase Sequence, Auto Reset, Fixed Unbalance Setting 1 CO output Relay Technical Specification Supply Voltage System 100-120/220-240/380-440 V AC ± 20% 50/ 60 Hz Auxillary 100-120/220-240/380-440 V AC ± 20% Output Cont

৳ 5,800

৳ 6,500

৳ 700 off

Call me First WhatsApp Messenger

Share

Minilec Phase Failure Relays VSP D2

Overview

Phase Failure, Unbalance,
Phase Sequence,
Auto Reset, Fixed Unbalance Setting
1 CO output Relay

Technical Specification

Supply Voltage

System 100-120/220-240/380-440 V AC ± 20% 50/ 60 Hz
Auxillary 100-120/220-240/380-440 V AC ± 20%

Output Contacts

Output Contacts2 CO

Trip Setting(Volts)

Phase SequenceYes
Phase Unbalance30 V to 70 V ± 6V (adjustable)

Trip Time Delay

On Phase Failure/ Unbalance3.5 sec.± 1.5 sec.
For Level Sensing NA

Resetting Mode

Resetting Mode Auto / Manual / Remote

Weight

Weight400 gms.

Dimensions (mm)

Overall (L x W x D)76 x 56.5 x 117.5
Mounting (L x W)67 x 46 alt/35 mm rail Mounting

Note:

Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
* Available on request.

Connection Diagrams

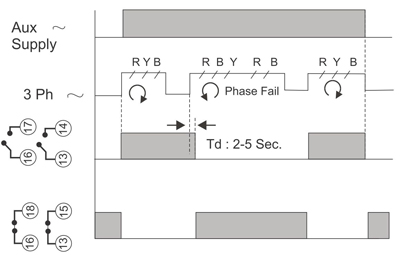

Timing/ Relay logic Diagram

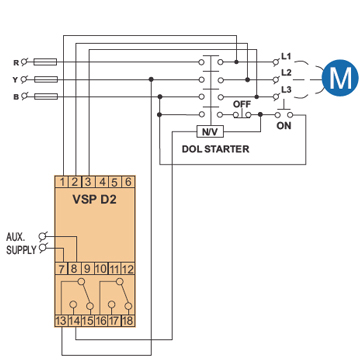

Electrical Connection Diagram

Relay contact position

Applications

Suitable for following applications :

Inverter
UPS
Rectifier Panel
Battery Charger Panel
3 Phase AC Panel
DG Set Panel

For more information Call Us : 01674368628 OR message Us: https://www.facebook.com/TechnoPowerBangladesh
