Minilec Phase Failure Relays P1 PFS2
Overview
- Phase Failure, Unbalance
- Phase Sequence
- Auto Reset, fixed unbalance setting
- 1 CO output relay
Technical Specification
Supply Voltage
- System110/240/380/415 V AC ± 10% 50/ 60 Hz
- AuxillaryBuilt-in
Output Contacts
Trip Setting(Volts)
- Phase SequenceYes
- Phase Unbalance40V ± 6V (fixed)
Trip Time Delay
- On Phase Failure/ Unbalance3.5 sec. ± 1.5 sec.
- For Level SensingNA
Resetting Mode
Weight
Dimensions (mm)
- Overall (L x W x D)50 x 40 x 80
- Mounting (L x W)8 - Pin Plug-in
Note:
- Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
- * Available on request.
Connection Diagrams

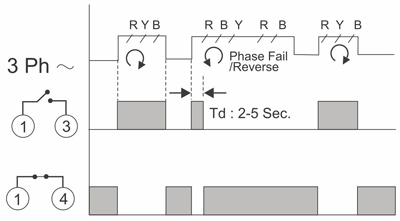

Timing/ Relay logic Diagram

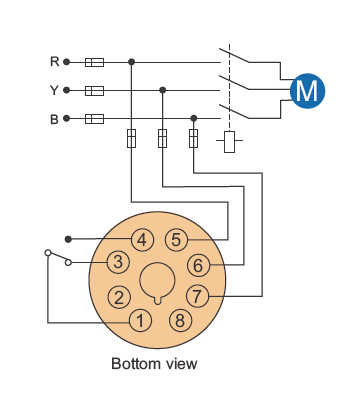

Electrical Connection Diagram
Applications
Suitable for 3 Ph. equipments :
- Agricultural Pump Starters
- 3 Ph. Split AC machines.
- Hoist Motor Control
- Valve Actuator Motor
- Machine Tools
- Injection Molding M/c
