Minilec Voltage Monitoring Relays S2 VMR5

Overview

• 3-Phase 3-Wire Under & Over voltage,
• Microcontroller based design, SMD Technology
• Auto/Manual Reset, Adjustable under/over voltage settings,
• Absolute values for UV/OV,
• Adjustable trip delay & ON delay,
• 2 CO output relay (or selectable 1CO for UV, 1CO for OV)
• Failsafe-non-failsafe selectable
• Technical Specification


System Supply

• System Supply100-120/220-240/380-440V AC -25%+20%,48-63 Hz

Output Relay Contact

• Output Relay Contact1 CO + 1 CO / 2 CO

Trip Setting

• Under VoltagePh Ph Sensing:
  For 380-440V AC: 285-425V AC (Variable)
  For 220-240V AC: 165-225V AC (Variable)
  For 100-120V AC: 75-115V AC (Variable)

• Over VoltagePh Ph Sensing:
  For 380-440V AC: 400-520V AC (Variable)
  For 220-240V AC: 230-290V AC (Variable)
  For 100-120V AC: 105-145V AC (Variable)


Trip Time Delay

• Trip Time Delay1-10 Sec (Variable)

Power on Delay

• Power on Delay1-10 Sec (Variable)

Reset

• ResetAuto / Manual Reset

Weight

• Weight110 gms. (Approx)

Dimensions (mm)

• Overall (L x W x D)90 x 35 x 60
• Mounting (L x W)35 mm rail Mounting

Note:

• Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
• Connection Diagram

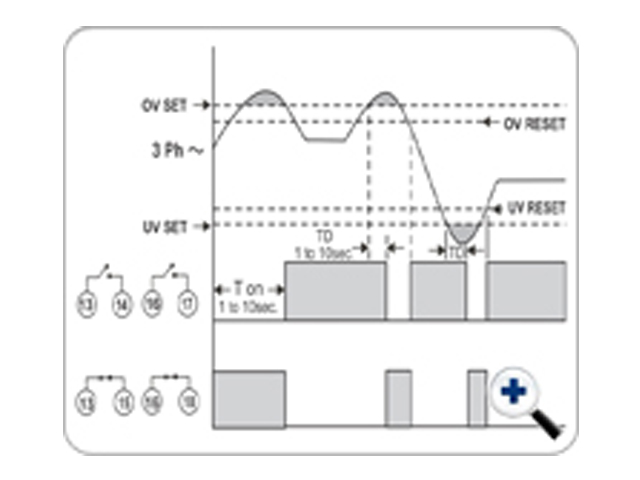

• Timing/ Relay logic Diagram

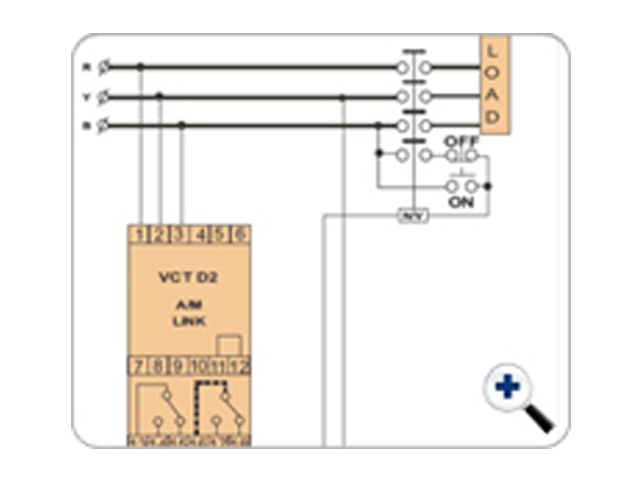

• Electrical Connection Diagram

•
• • Applications
  • • Auto Mains Failure Panels.
    • Generator Set Panels.
    • Battery Charger Panels.
    • Inverter Panels.
    • DC Drive Control panels.
    • UPS
  •
