Minilec Voltage Monitoring Relays VCT D2

Overview

• 3-Phase 3-Wire Under & Over voltage,
• Auto/Manual Reset,
• Adjustable under / over voltage settings,
• Adjustable trip delay & ON delay,
• 2 CO output relay
• Technical Specification

System Supply

• System Supply110/240/380/415/440 V AC +20%, – 25% 50/60Hz

Output Relay Contact

• Output Relay Contact2 CO

Trip Setting(Volts)

• Under Voltage75% - 95% (adjustable)
• Over Voltage105 - 120% (adjustable)

Trip Time Delay

• Trip Time Delay1-10 secs. (adjustable)

Power on Delay

• Power on Delay1-10 secs. (adjustable)

Reset

• ResetAuto / Manual

Weight

• Weight450 gms.

Dimensions (mm)

• Overall (L x W x D)76 x 56.5 x 117.5
• Mounting (L x W)67 x 46  / 35 mm rail Mounting

Note:

• Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
•

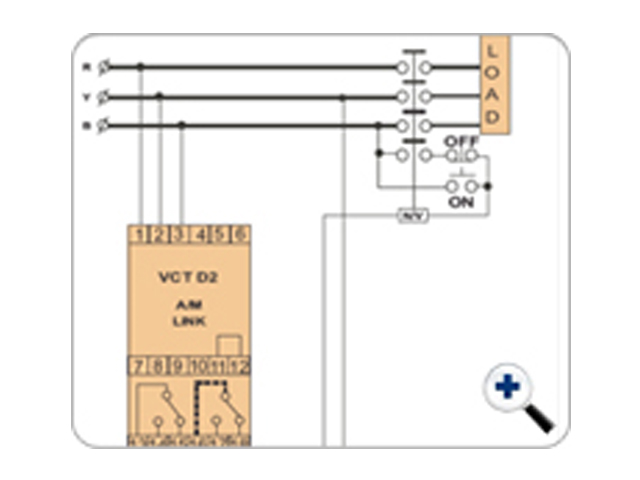

• Connection Diagram

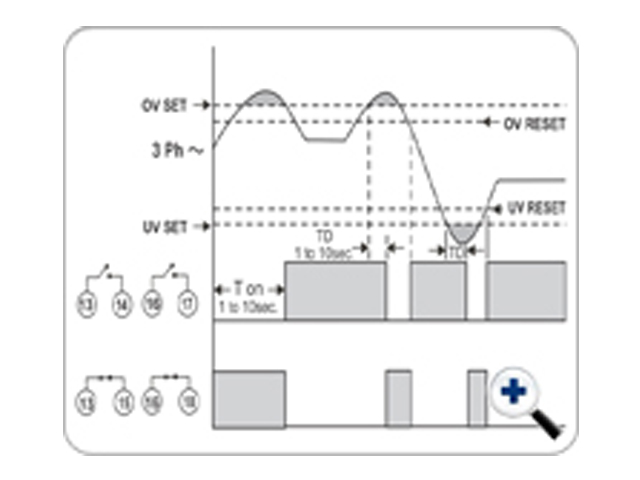

• Timing/ Relay logic Diagram
•

• Electrical Connection Diagram
•
• • Applications
  • Auto Mains Failure Panels.
  • Generator Set Panels.
  • Battery Charger Panels.
  • Inverter Panels.
  • DC Drive Control panels.
  • UPS
  •
