Minilec Voltage Monitoring Relays D1 VCR1

Overview

• Single Phase Under & Over voltage,
• Auto Reset,
• Adjustable under / over voltage settings,
• 2 CO output relay
• Technical Specification

Supply Voltage

• System Supply220/230/240 V AC (+ 20% - 30%), 50/60 Hz

Output Contacts

• Output Relay Contacts2 CO

Trip Setting(Volts)

• Under Voltage75 - 95% [Variable] of set value
• Over Voltage105 - 120% [Variable] of set value

Trip Time Delay

• Trip Time Delay2- 5 Sec (Fixed) (UV/OV)

Power on Deley

• Power on Deley

Reset

• ResetAuto Reset

Weight

• Weight180 gms.

Dimensions (mm)

• Overall (L x W x D)76 x 30.5 x 117.5
• Mounting (L x W)68 centre to centre/ 35 mm rail Mounting

Note:

• Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)

• Connection Diagram

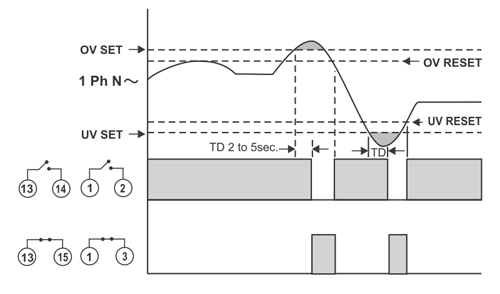

• Timing/ Relay logic Diagram
•

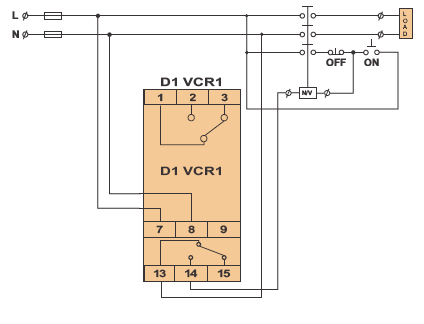

• Electrical Connection Diagram
•
• • Applications
  • Battery Charger & Float Charger Panels.
  • Telecom Power Supply Units
  • UPS for Office Computers
  •
  • For more information Call Us : 01674368628 OR message Us: https://www.facebook.com/TechnoPowerBangladesh
