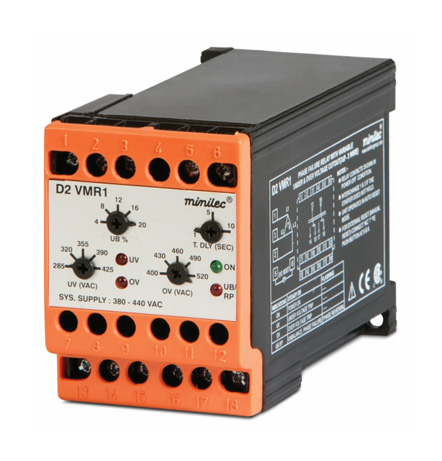

Minilec Phase Failure Relays D2 VMR1

Supply Voltage

• System100-120 / 220-240 / 380-440V AC -25%+20%, 48-63 Hz
• AuxillaryBuilt In (from 3 Phase)

Output Contacts

• Output Contacts2 CO

Trip Setting(Volts)

• Phase SequenceYes
• Phase Unbalance4 % - 20 % [Variable]
• Under VoltageFor 380-440V AC
  For 220-240V AC
  For 100-120V AC285-425V AC [Variable]
  165-225V AC [Variable]
  75-115V AC [Variable]
• Over VoltageFor 380-440V AC
  For 220-240V AC
  For 100-120V AC400-520V AC [Variable]
  230-290V AC [Variable]
  105-145V AC [Variable]

Trip Time Delay

• On Phase FailureInstant
• On UV/OV1 To 10 Sec [Variable)

Resetting Mode

• Resetting ModeAuto/ Manual Reset (External NC Push Buttons)

Weight

• Weight300 gms.

Dimensions (mm)

• Overall (L x W x D)76 x 56.5 x 117.5
• Mounting (L x W)67 x 46  / 35 mm rail Mounting
