Minilec Voltage Monitoring Relays D1 VCT1

Overview

• 3-Phase 3-Wire Under & Over voltage,
• Auto Reset,
• Adjustable UV/OV settings,
• Fixed trip delay,
• 2 CO output relay
• Technical Specification

System Supply

• System Supply100-120/220-240/380-440 V AC

Output Relay Contact

• Output Relay Contact2 CO

Trip Setting(Volts)

• Under Voltage75-115 Unit of 100-120 V AC
  165-225 Unit of 220-240 V AC
  285-425 Unit of 380-440 V AC
• Over Voltage105-145 Unit of 100-120 V AC
  230-290 Unit of 220-240 V AC
  400-520 Unit of 380-440 V AC

Trip Time Delay

• Trip Time Delay3.5±1.5 Sec (UV/OV)

Power on Delay

• Power on Delay

Reset

• ResetAuto / Reset

Weight

• Weight200 gms. (Approx)

Dimensions (mm)

• Overall (L x W x D)76 x 30.5 x 117.5
• Mounting (L x W)68 centre to centre / 35 mm rail mounting

Note:

• Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
•


• Connection Diagram

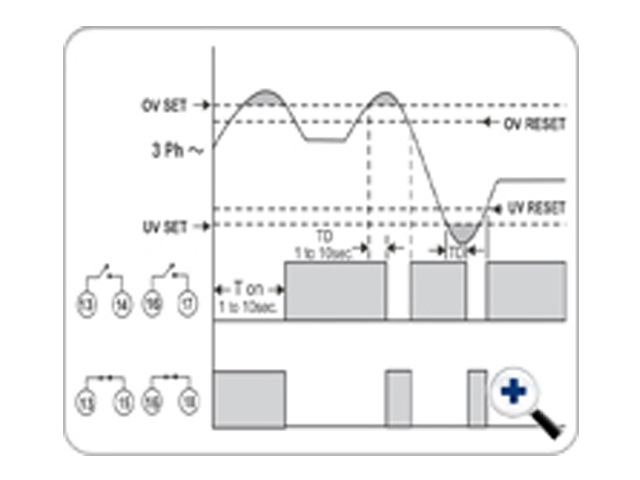

• Timing/ Relay logic Diagram
•

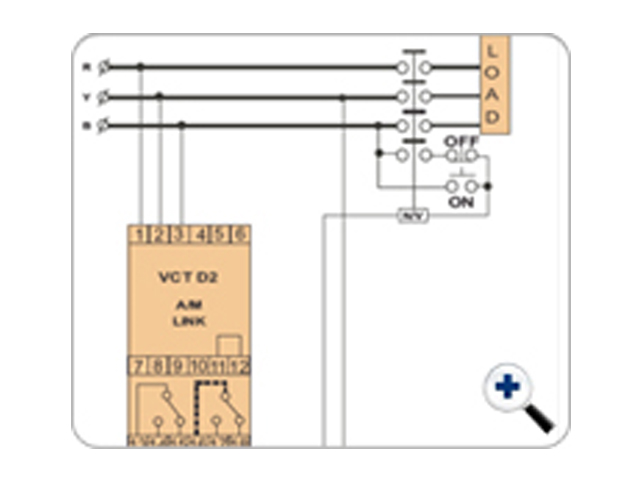

• Electrical Connection Diagram
•
• • Applications
  • Auto Mains Failure Panels.
  • Generator Set Panels.
  • Battery Charger Panels.
  • Inverter Panels.
  • DC Drive Control panels.
  • UPS
  •
