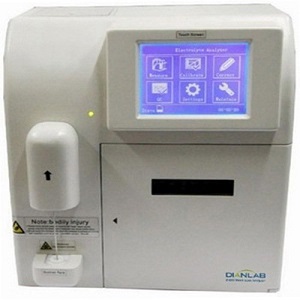

Electrolyte Analyzer D-E63/D-E65

Technical Specification:

MAIN CHARACTERS:

Sample	Whole blood, Serum, Plasma, Urine
Sample Volume	100-200ul, adjustable
Test Method	selectivity electrode technology
Reagent pack	Calibration solution in one combined reagent pack
Calibration	Automatic
Test Speed	≤ 60 samples/hour
Memory Storage	Up to 2000 test results
Display	LCD (320*240)
Input	Touch screen, Bar-code scanner
Output	Build-in thermal printer, RS-232C tie
Waste Storage	Closed Pack System
Reagent Pack	Closed Reagent System
Dimension	34x25x40cm(LWH)
Net Weight	5 Kg

TEST RANGE AND ACCURACY:

Channel	MEASURING RANGE	RESOLUTION	CV%
K⁺	0.50 ~ 15.00 mmol/L	0.01 mmol/L	≤ 1.0%
Na⁺	30.0 ~ 200.0 mmol/L	0.1 mmol/L	≤ 1.0%
Cl^–	30.0 ~ 200.0 mmol/L	0.1 mmol/L	≤ 1.0%
Ca⁺⁺	0.1 ~ 5.0 mmol/L	0.01 mmol/L	≤ 2.0%
Li⁺	0.2 ~ 3.0 mmol/L	0.01 mmol/L	≤ 3.0%
pH	4.00 ~ 9.00	0.01	≤ 1.0%

WORKING ENVIRONMENT:

Ambient Temperature	15 ℃ ~ 30 ℃
Relative Humidity	20~85%
Sun Radiation	Avoid direct sunshine
Power Supply	AC100-240V, 50/60HZ
