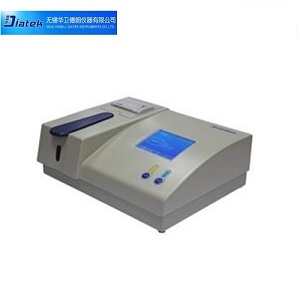

DKP-620 Laboratory Equipment Digital Semi-Auto Biochemistry Analyzer

Type	Biochemical Analysis System
Brand Name	DIATEK
Model Number	DKP-620
Net Weight	7 kg
Gross Weight	9 kg
Instrument Size	430mm(L)×330mm(W)×140mm(H)
Package Dimension	350mm×450mm×590mm
Power Supply	AC 100V~240V, 50/60 Hz
Fuses	2-φ5×20 BGXP1.5A 250V
Flow cell	32 uL quartz flow cell
Work environment	Temperature: +5 ~ +40℃;Relative humidity: 20%~80%;
	Atmospheric pressure:700~1060hpa;
Storage temperature	-20℃ ~ 50℃
Lamp	Tungsten Halogen Lamp, OSRAM 64225 6V/10W
Reading range	0.000~4.500A
Warm-up time	10 min
CPU	ARM core CPU
Ports	RS232 serial port,parallel printer port,USB port,PS/2 keyboard and mouse port
Display	320×240 LCD
Input mode	Touch Screen, Touch pen, external keyboard and mouse
Memory Capability	500 test items and up to 10,000 test data
Printer	Built-in Thermal Printer, optional external printer
Wavelength Range(nm)	340,405,510,546,578,630,690(add up to 2 filters in the range of 300~850)
Analysis means	end-point, kinetic, fixed-time, nonlinear
Carryover	≤ 1.0%
Stability	≤ 0.01 A
Absorbance Accuracy	≤±0.005A or ±1%
Resolution	±0.001Abs
Minimum volume	200μL ~3000μL
Half bandwidth	≤ 6 nm
