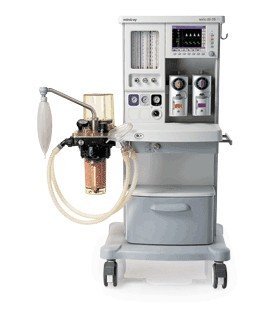

MINDRAY WATO EX-20 Anesthesia Machine
Specifications
Dimensions
- Height: 1375 mm
- Width: 710 mm (without breathing circumference) 880 mm (with breathing circumference)
- Depth: 620 mm
- Weight:<120 kg (including trolley base, without vaporizer and cylinder)
- Top shelf
- Weight limit: 30 kg
- Length:550 mm
- Width: 265 mm
- Working surface
- Height:820 mm
- width: 500 cm
- Depth: 310mmm
- Working surface:265 mm
Drawer-Internal dimensions
- Height: 240mm
- Width: 350mm
- Depth:275mm
Bag Arm
- Height: 1030mm
- length: 320mm
- Connection:ISO 22mm OD, 15mm ID
Screen
- Display type: active color matrix TFT
- Display size: 7.0 in diagonal
- Resolution: 800 x 400
- Brightness: Unadjustable
- Multi-display selectable: standard
- Display Parameters: all settings and alarm parameters (Breath rate, I / E ratio, tidal volume, minute volume, PEEP, Pmean Ppeak, Pplat and)2 Concentration)
- Display Graphics: Pressure-Time waves, Flow-Time, Volume-Time, Co2 waves (O2)
Ventilator Parameter Ranges
- Tide volume range: 40~1500ml (VCV mode)
- Incremental settings: 20~100ml (5 ml increments), 100~300ml (10 ml increments) 300~1500ml (25 ml increments)
- Pressure range (inspired): 5~60 cmH2O increments of 1 cmH2O
- Rate range: 4~100bpm increments of 1 bpm (VCV, P-mode) 4~60bpm increments of 1bpm (SIMV)
- Inspiratory / expiratory ratio (I: E) range: 4:1~1:8 increments of 0.5 (VCV, Trigger window: 5-90% increase (SIMV)
- Flow Trigger: 0.5~15L / min increments of 0.5L / min (SIMV
- Pressure Trigger: -20~-1cmH2O increments of 5% (SIMV)

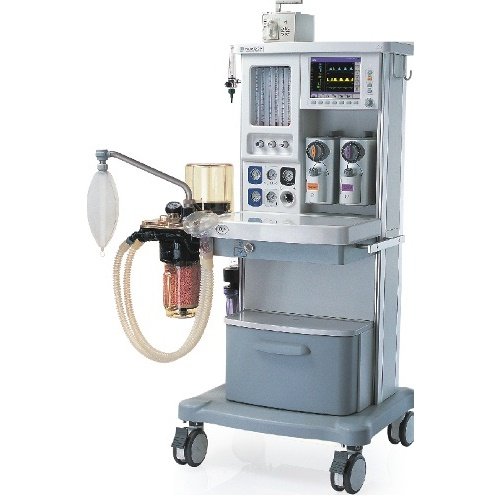

MINDRAY WATO EX-20 Anesthesia Machine
Product Description
The WATO EX-30 & EX-20 Series of anesthesia machines are suitable for general anesthesia in a wide range of operating theatre patients from children to adults. With stable function, advanced safety design, reliable performance, and user-friendly interface, the WATO gives clinical users basic monitoring measurements on a colorful LCD screen with up to 3 waveforms, including Paw, TVe, MV, Ppeak, and Pmean, with graphs of pressure and flow at the same time. Except for basic ventilation modes, WATO still offers advanced modes such as SIMV applicable for the spontaneous breathing of patients. The powerful data review supports 24-hour trends for alarm events. Besides the integrated monitoring parameters, WATO also provides external monitoring covering the sidestream of EtCO2.
- Breathing circuit with CO2bypass valve enabling the exchange of CO2 canisters during operation
- The information displayed on the screen indicating the correct assembly of the CO2 canister
- Data displayed for the correct assembly of the breathing circuit offering proof of health
- Multi-selectable monitor on a colorful LCD screen
- Modern and ergonomic considerations
- Electrophysics
