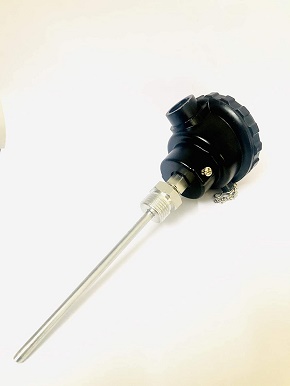

JAIN AUTOMATION RTD PT-100 HEAD TYPE THERMOCOUPLE WITH 1/2 BSP NUT (3 WIRE)

Measuring Range: -40 to +400 Deg.C; Accuracy: ± 0.2 Deg.C Output: Pt 100 3 Wire Type Standard (Also available 2 Wire Type, please select as a request for customization); Type: Simplex type with thermocouple Weather Proof head MOC: Stainless Steel 304; Pipe Length: Standard is 150 mm; 1/2" BSP Male Outer Diameter: 6 mm ( length and Outer Diameter can be customized as per Requirement ); With Calibration certificate, By far the most common devices used in industry have a nominal resistance of 100 ohms at 0 °C and are called Pt100 sensors ("Pt" is the symbol for platinum, "100" for the resistance in ohms at 0 °C). Weather Proof Head, Temperature Range -50 to 400c, Thread 1/2 bsp, SS304, Connection 3 Wire, length-150mm, Od-6mm.
