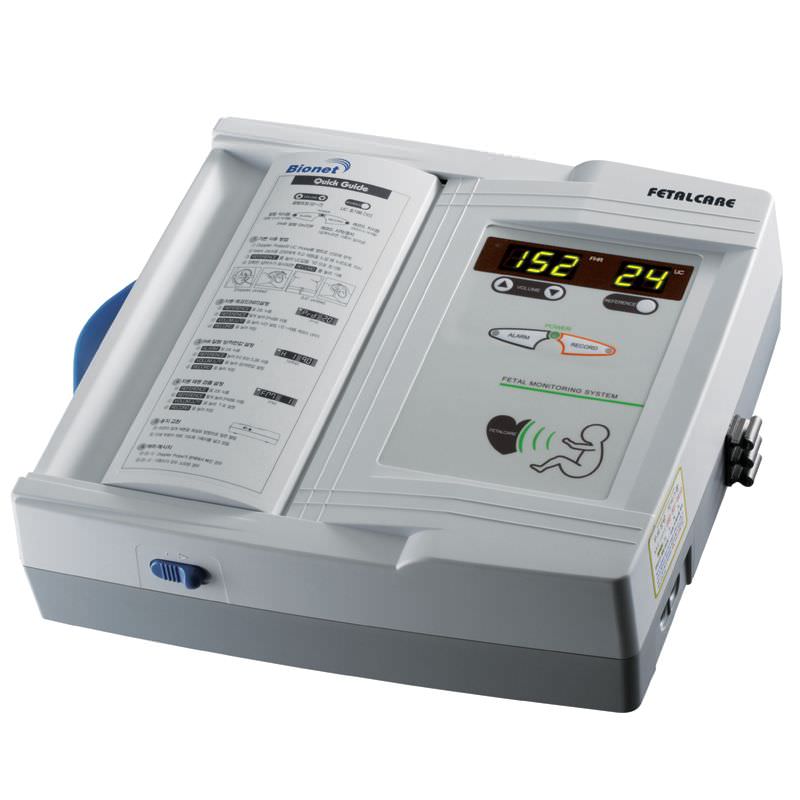

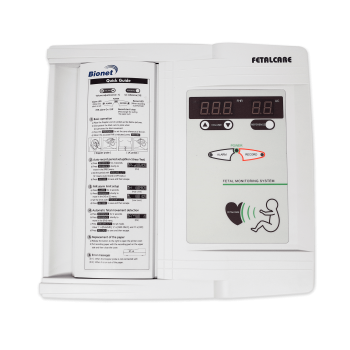

FC 700 ANTEPARTUM Fetal monitor for single Fetus

Dimension	296 (W) x 305.5 (H) x 92.5 (D) mm, approx. 2.9 kg
Display	7-segment LED 2 channels (HR, UC)
Printer	Thermal array type Print speed: 1, 2, 3 cm/min Paper feeding function
Power	Input: AC100 – 240v (50/60 Hz) Output: DC18v, 2.5A Consumption: 80w
External Link	RS-232C: Program download Central (option)
Fetal Heart Rate	Input Signal: Ultrasound pulsed doppler Ultrasound frequency: 1.0 MHz Intensity: FHR range: 50~240 BPM FHR accuracy: 120~160: ±1 BPM
Uterine Contraction	External type Frequency response: DC ~0.5Hz Reference(zero) control Measurement range: 0~99 units
Fetal Movement Measurement	Detection source: Ultrasound pulsed doppler
Indicators	Heart rhythm with signal quality Alarm, printing on/off state AC power
Sound	Doppler sound Alarms sound Information sound
Setup	Alarm upper/low limit value Record speed, apper grid, fetal movement on/off, time/date, print contrast, auto print period
Function	Event mark function Auto fetal movement detection

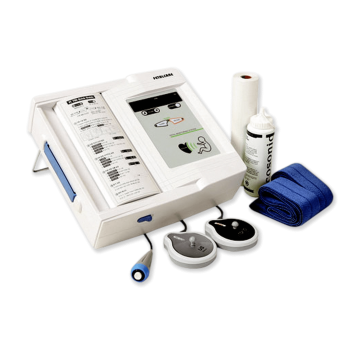

Standard Accessories	Ultrasound doppler probe – 1 ea UC probe – 1 ea Event marker jack – 1 ea Printer paper – 2 rolls Power adaptor & cord – 1 ea Ultrasound gel – 1 ea Probe belt – 2 ea Operation manual – 1 ea Stand – 1 ea Basket – 1 ea Bag – Optional
