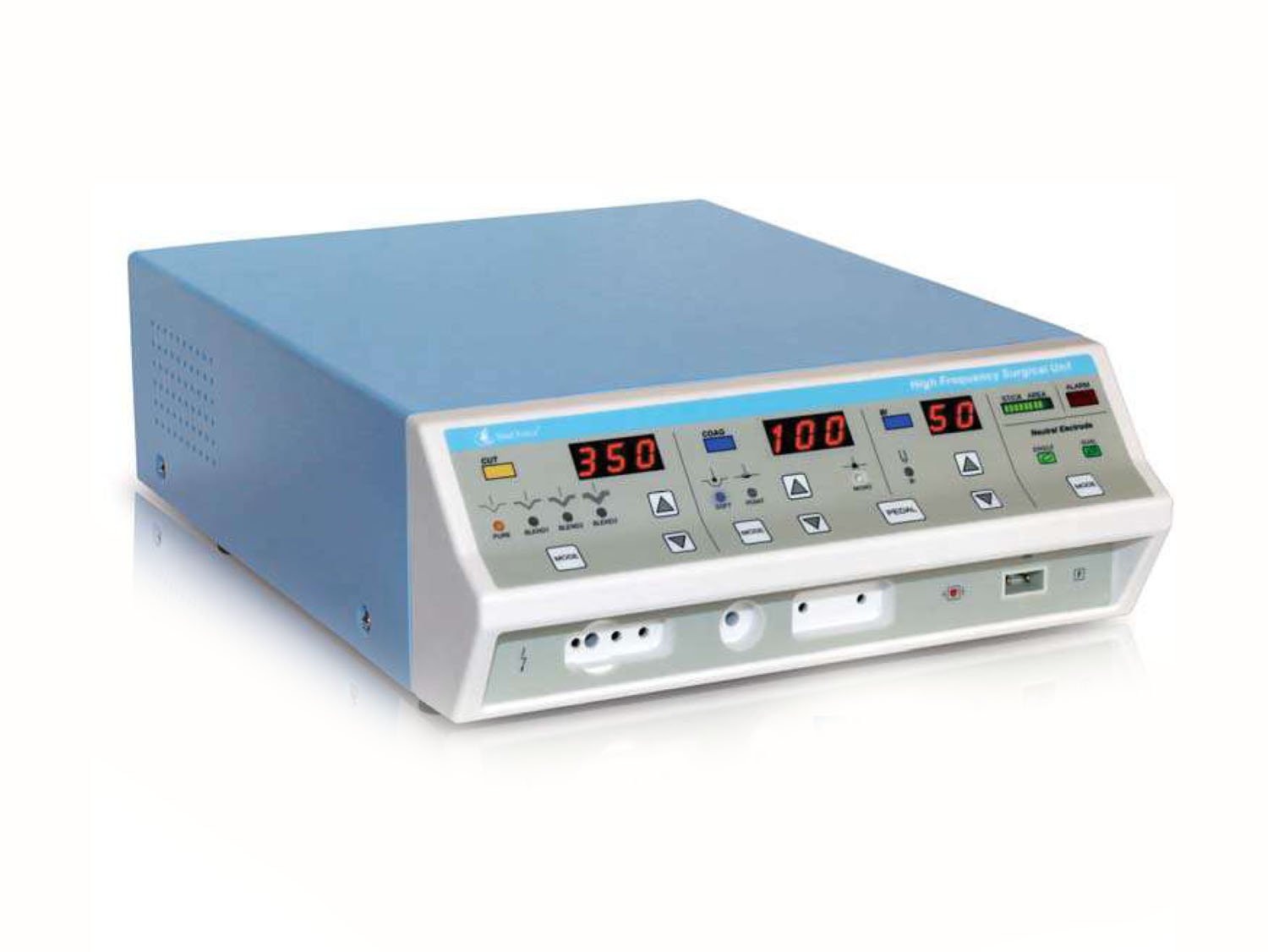

Electrosurgical Diathermy EB-05 Healforce
৳ 295,000
EB-05 can be used in various operations such as general surgery, dermatology, plastic surgery, endoscopy, vascular surgery, heart / thoracic surgery, minimally invasive surgery, and ophthalmology.
| Monopolar | |
| Cutting mode : | Pure: 400Watts\ 500 Load (OHMS)\ 2300V\ 1.5 Crest Factor. |
| Cutting mode : | Blend1: 300 Watts\ 500 Load (OHMS)\ 2700V\ 2.1 Crest Factor. |
| Cutting mode : | Blend2: 200Watts\ 500 Load (OHMS)\ 3.200V\ 2.5 Crest Factor. |
| Cutting mode : | Blend3: 150Watts\ 500 Load (OHMS)\ 3.700V\ 3.1 Crest Factor. |
| Coagulation mode : | Point: 120Watts\ 500 Load (OHMS)\ 5.600V\ 6.1 Crest Factor. |
| Coagulation mode : | Soft: 120Watts\ 500 Load (OHMS)\ 3.400V\ 6.1 Crest Factor. |
| Coagulation mode : | Spray: 120Watts\ 500 Load (OHMS)\ 8.500V\ 8.3 Crest Factor. |
| Bipolar | |
| Cutting mode : | Standard: 70Watts\ 200 Load (OHMS)\ 1.450V\ 1.5 Crest Factor. |
| Coagulation mode : | Standard: 70Watts\ 500 Load (OHMS)\ 240V\ 1.5 Crest Factor. |
| Coagulation mode : | Precise: 70Watts\ 200 Load (OHMS)\ 360V\1.5 Crest Factor. |
| Accessory & Supply Connection | |
| Finger-switch Pencil: | 2 |
| Foot-Switch Pencil: | 1 |
| Patient return electro code: | 1 |
| Footswitch: | 1 |
| AC power supply: | 1 |
| Equipotential bonding: | 1 |
| Power feature | |
| Rate frequency: | 512kHz (110\240v Ac,60\50Hz). |
| Isolated output: | YES. |
| Quantitative display of contact area: | YES, for ”Split” type of neutral electro code. |
| Contact area indicator lamp: | 10 lamps (one for 10% contact), alarm beep and flicker if contact<20%. |
| Split\Solid neutral electrode definition: | YES, ”Split” or ”Solid” indicator lamp lights up. |
| Adjustable alarm volume: | YES |
| Operational duty cycle: | 10 seconds ON, 30 seconds OFF. |
| Cooling method: | Convection |
| Regulation | |
| Type according to EN 60601-1: | CF. |
| Protection class to EN 60601-1: | Class 1. |
| Classification acc. | to MDD 93\42EEC: llb. |
| Physical | |
| Dimension (WxDxH): | 460*410*160mm. |
| Weight: | 11.2 Kg. |
