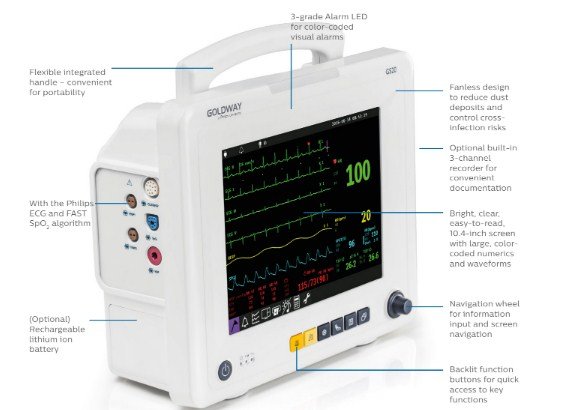

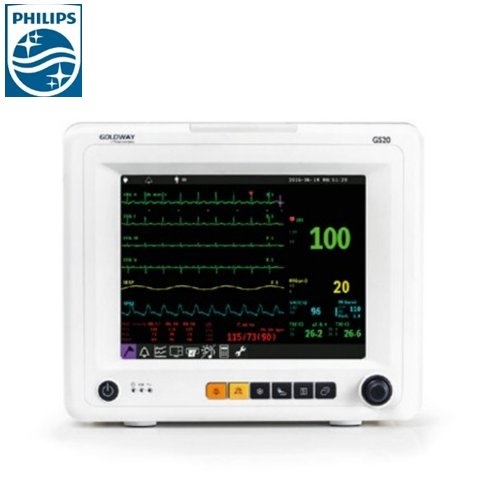

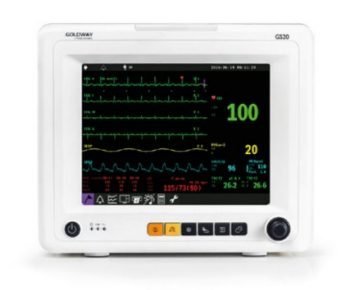

Digital Philips Goldway GS20 Multipara Patient Monitor Screen Size: 10.4 Inch
৳ 150,000
| Specifications | |
| ECG | |
| Lead type | 3-lead or 5-lead selectable |
| Lead selection, 3-lead | I, II, III |
| Lead selection, 5-lead | I, II, III, aVR, aVL, aVF, V |
| HR measurement | Adult / pediatric: 15 bpm – 300 bpm Neonatal: 15 bpm – 300 bpm Step: 1 bpm |
| HR accuracy | ±5 bpm or ±1 %, whichever is greater |
| Arrhythmia | 21 calls |
| ST measurement range | -2.5 mV – +2.5 mV |
| Waveform speed | 6.25 mm/s,12.5 mm/s, 25 mm/s, 50 mm/s |
| Gain selection | x 1/4, x 1/2, x 1, x 2, x 4, Auto |
| Pacemaker detection | Yes |
| Protection | Against electrosurgical interference and defibrillation |
| Non-invasive blood pressure (NBP) | |
| Method | Automatic oscillometric |
| Parameters | SYS/DIA/MAP/Pulse Rate |
| Operating mode | Manual/Auto/STAT |
| Auto measure intervals | 3, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes |
| Units | mmHg/kPa |
| Cuff pressure range, adult / pediatric | 0 – 300 mmHg ( 0 kPa – 40.0 kPa) |
| Cuff pressure range, neonate | 0 – 150 mmHg ( 0 kPa – 20.0 kPa) |
| Systolic measurement range, adult/ pediatric | 30 mmHg – 254 mmHg (4.0 kPa – 33.9 kPa) |
| Systolic measurement range, neonate | 30 mmHg – 135 mmHg (4.0 kPa – 18.0 kPa) |
| Diastolic measurement range, adult / pediatric | 10 mmHg – 220 mmHg (1.3 kPa – 29.3 kPa) |
| Diastolic measurement range, neonate | 10 mmHg – 110 mmHg (1.3 kPa – 14.7 kPa) |
| MAP measurement range, adult / pediatric | 20 mmHg – 235 mmHg (2.7 kPa – 31.3 kPa) |
| MAP measurement range, neonate | 20 mmHg – 125mmHg (2.7 kPa – 16.7kPa) |
| Accuracy, maximum standard deviation | 8 mmHg (1.1 kPa) |
| Accuracy, mean error | ±5 mmHg (±0.7 kPa) |
| Pulse rate range | 40 bpm – 240 bpm |
| Pulse rate accuracy | ±5bpm or ±5%, whichever is greater |
| SpO2 (Philips SpO2 technology) | |
| Measurement range | 0 – 100 % |
| Accuracy | 70 % – 100 %, depends on sensor; 0 – 69 %, unspecified |
| Waveform speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Pulse rate range | 30 bpm – 300 bpm |
| Pulse rate accuracy | ±2 bpm or ±2%, whichever is greater |
| Perfusion index | Yes |
| Respiration (RESP) | |
| Measurement method | Thoracic impedance |
| Measurement range | 0 rpm – 150 rpm |
| Accuracy | 0rpm – 120rpm: ±1 rpm; 121rpm – 150rpm: ±2 rpm |
| Waveform speed | 6.25 mm/s,12.5 mm/s, 25 mm/s, 50 mm/s Accuracy undefined |
| Gain selection | x 1/2, x 1, x 2 |
| Apnea alarm | Yes, 10 – 60 s |
| Work mode | Auto or manual (threshold) |
| RESP lead | RA-LL |
| Temperature (TEMP, 2-channel) | |
| Measurement range | 0 – 50℃ (32℉ – 122℉) |
| Resolution | 0.1℃ (0.2℉) |
| Accuracy | ±0.1℃ (±0.2℉) (without sensor) |
| Units | ℃ / ℉ |
| Minimum measuring time | Attachable skin surface probe: less than 10 minutes Esophageal/rectal probe: less than 2 minutes |
| Capnopgraphy (etCO2, optional) | |
| Method | Microstream, infrared absorption (Oridion) |
| Parameters | awRR, etCO₂, inCO₂ |
| Measurement range | 0 – 99 mmHg (0 kPa – 13.2 kPa) |
| Accuracy+C781, 0 – 38 mmHg (0 kPa – 5.1 kPa) | ±2 mmHg (±0.28 kPa) |
| Accuracy, 39 mmHg – 99 mmHg (5.2 kPa – 13.2 kPa) | ± (5% of reading + 0.08% for every 1 mmHg (0.13 kPa) above 38 mmHg (5.1kPa) |
| awRR range | 0-150 rpm |
| awRR accuracy, 3 rpm – 70 rpm | ±1 rpm |
| awRR accuracy, 71 rpm – 120 rpm | ±2 rpm |
| awRR accuracy, 121 rpm – 150 rpm | ±3 rpm |
| Invasive Blood Pressure | |
| Accuracy | ±4 mmHg (0.53 kPa) or ±4 % of reading, whichever is greater |
| Invasive blood pressure (IBP, 2-channel, optional) | |
| Parameters | SYS/DIA/MAP/Pulse Rate |
| Measurement range | -50 – 400 mmHg (-6.6 kPa – 53.3 kPa) |
| Waveform speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Resolution | 1 mmHg (0.13 kPa) |
| Units | mmHg/kPa/cmH₂O |
| Transducer sensitivity | 5 uV/V/mmHg |
| Pulse rate range | 30 bpm – 254 bpm |
| Pulse rate accuracy | ±2bpm or ±2%, whichever is greater |
| Sampling rate | 62.5 samples per second |
| Recorder (optional) | |
| Type | Built-in thermal recorder, 3 channels |
| Print mode | Real-time recording, timed recording, alarm-activated recording |
| Print speed | Auto, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Display | |
| Type | Color TFT LCD, 4:3 |
| Size | 10.4+611:631″ |
| Resolution | 800 x 600 p |
