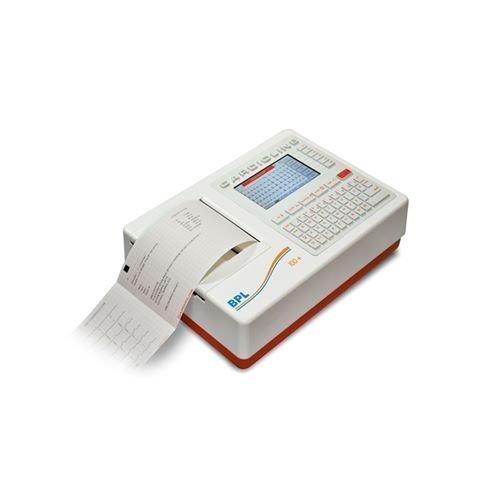

BPL Cardioline ECG100+
৳ 195,000
Cardioline 100+ is a sleek and stylish six-channel ECG recorder designed with contemporary needs in mind. In combination with robustness and reliability, 100 + offers traces that you can trust, Equipped with an alphanumeric keypad and a color display. Equipped with Glasgow algorithm, it accurately interprets ECGs and comes with various communication protocols and various information transfer formats.
Technical Specifications
| ECG Leads | 12-leads (I, II, III, aVR-L-F, V1-6) |
| CMRR | 115 dB |
| Sampling Frequency | 500 or 1000 Hz/channel/storage |
| A/D Conversion | 24 bit |
| Resolution | < 1uV/LSB |
| Bandwidth | 0.05 – 150 or 300 Hz depending on the sampling rate |
| Pacemaker Detection | Hardware and software correlated detection with digital filter |
| Filters | Fully digital high-pass diagnostics filter; digital AC interference adaptive filter (50/60 Hz); digital low-pass filter (applied during display and printing stage) |
| Defibrillation Protection | AAMI/IEC standards |
| Front-End Performance | ANSI/AAMI IEC 60601-2-25:2011 |
| Safety | ANSI/AAMI ES1, Class I CF, CE0476 |
| ECG Storage | Internal memory 100 ECGs, an expansion for 1000 additional ECGs (optional) |
| Display | 4.3″ backlit LCD color display, displays the ECG waveform in real time |
| Thermal Printer | 8 dot/mm; 108mm; Z-fold 150mm paper |
| Manual Printing | 3 or 6 channels -5/10/25/50 mm/s |
| Automatic Printing | Standard or Cabrera; 3, 3+1, 6 channels |
| Patient Demographic, Global Measurements, Optional Interpretation (Glasgow University – Prof. MacFarlane) | |
| Keypad | Mechanical keypad with alphanumeric keys and function keys |
| Connectivity | USB device, LAN, 802.11g/n Wi-Fi (optional) |
| Patient Cable | Standard 15D, 10 electrodes |
| Data Export | PDF, XML (optional), GDT (optional), DICOM (optional), HL7 (optional) |
| Power Supply | Medical AC power-supply unit (100-240 VAC 50/60 Hz); internal rechargeable battery |
| Dimensions | 285 x 204 x 65 mm |
| Weight | 1.8kg with battery |
